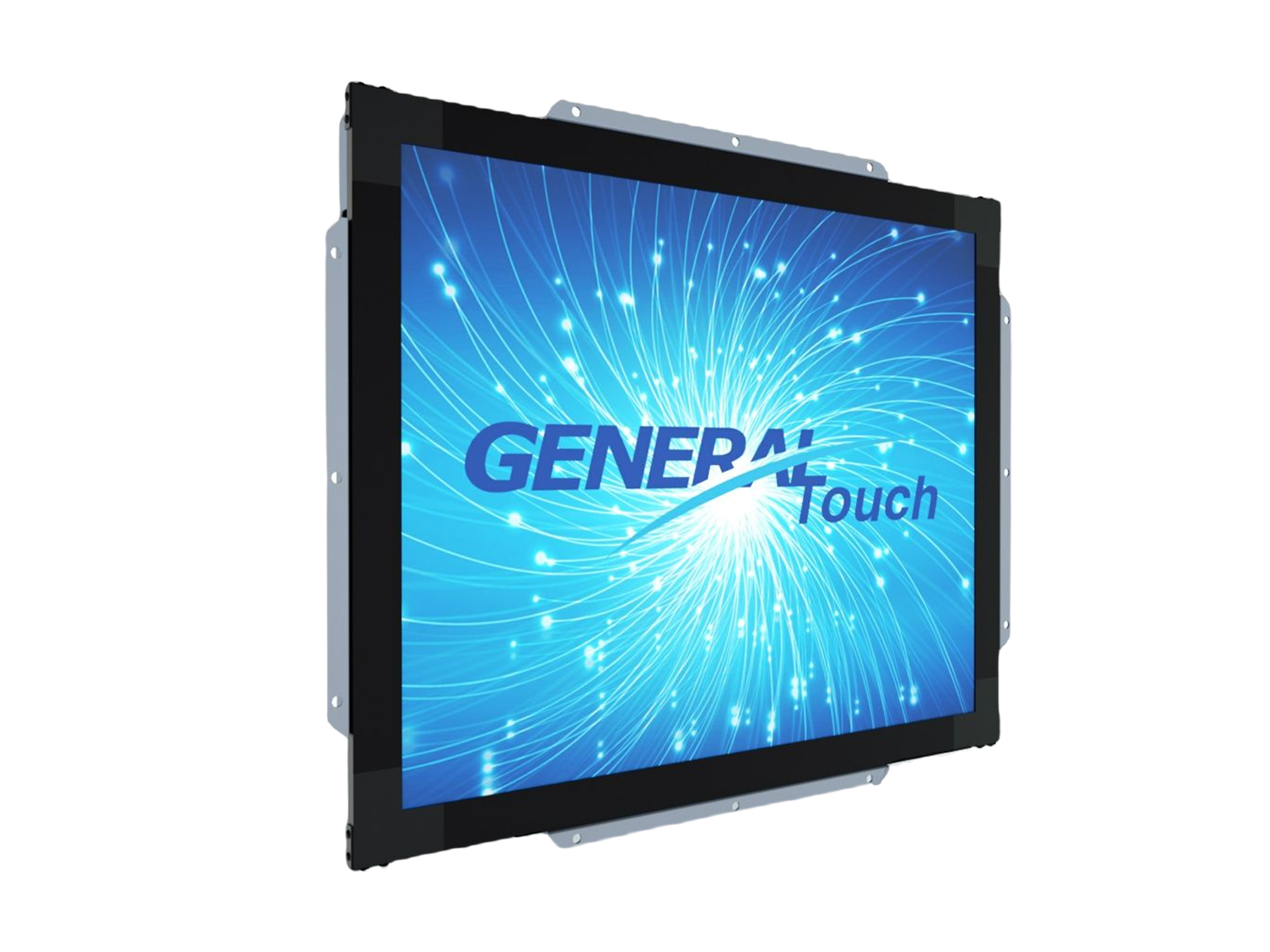

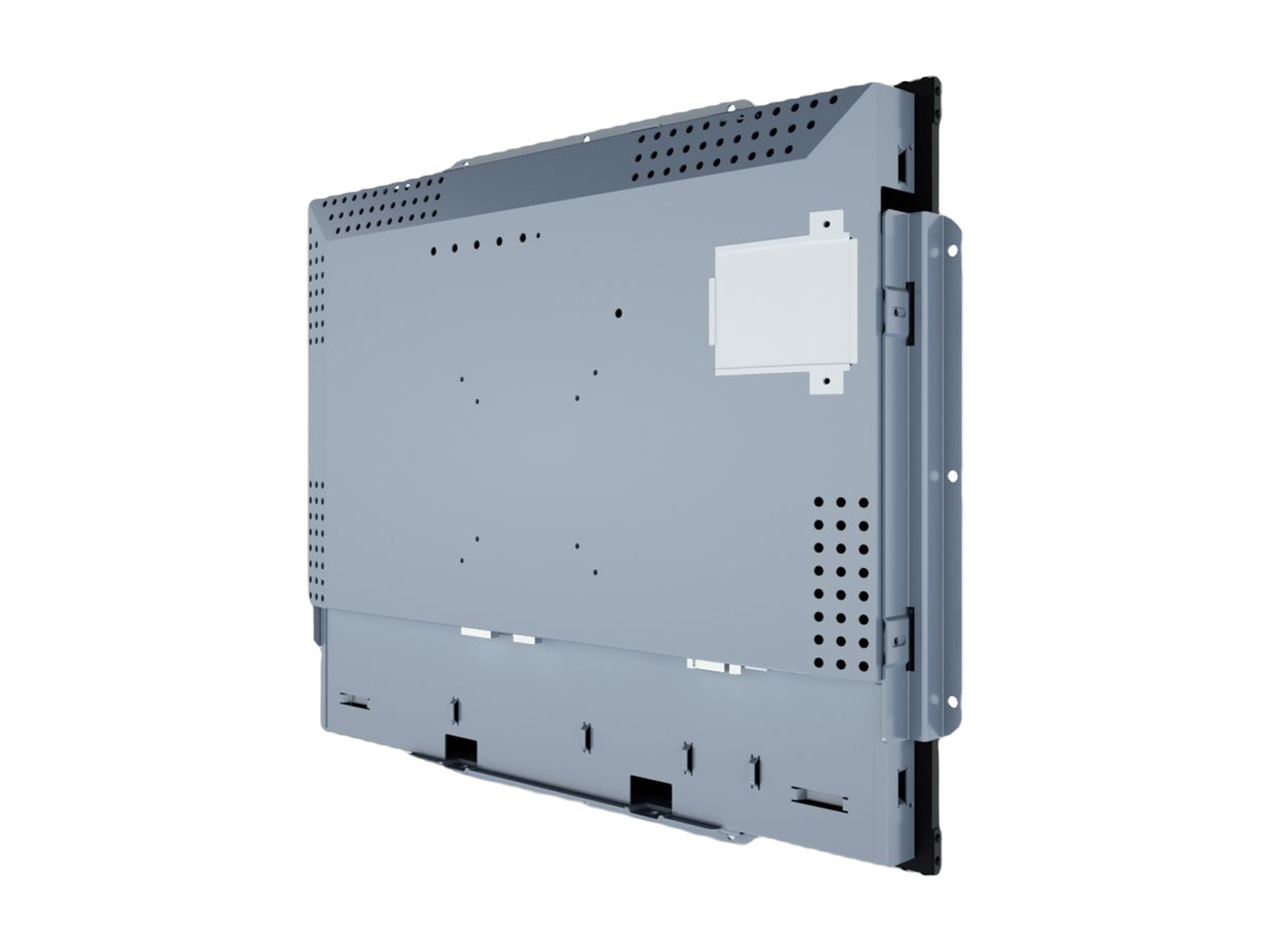

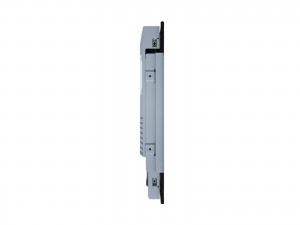

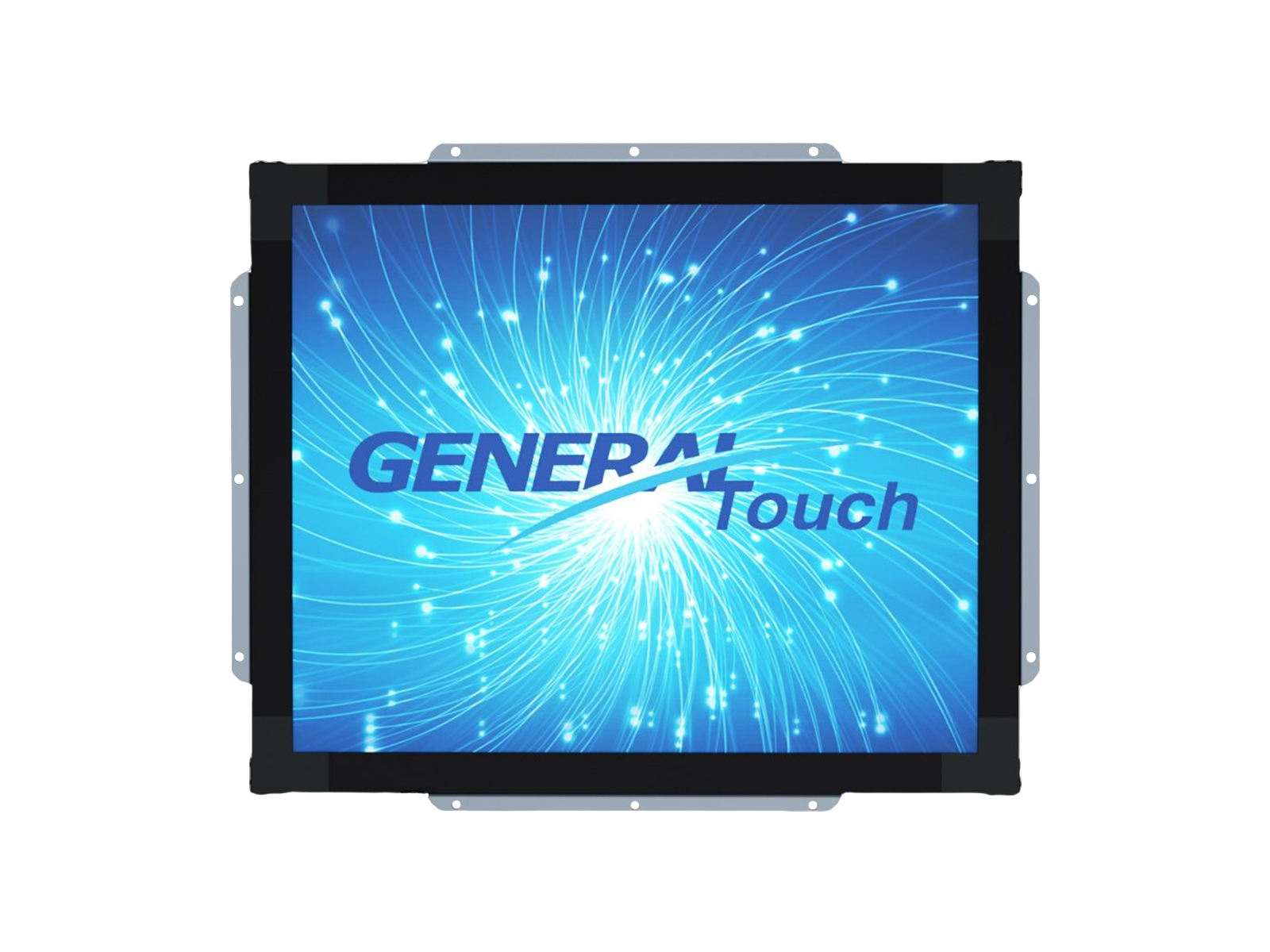

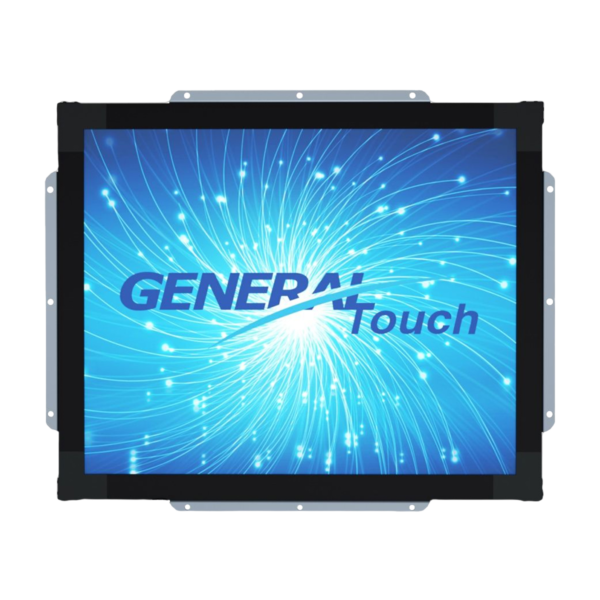

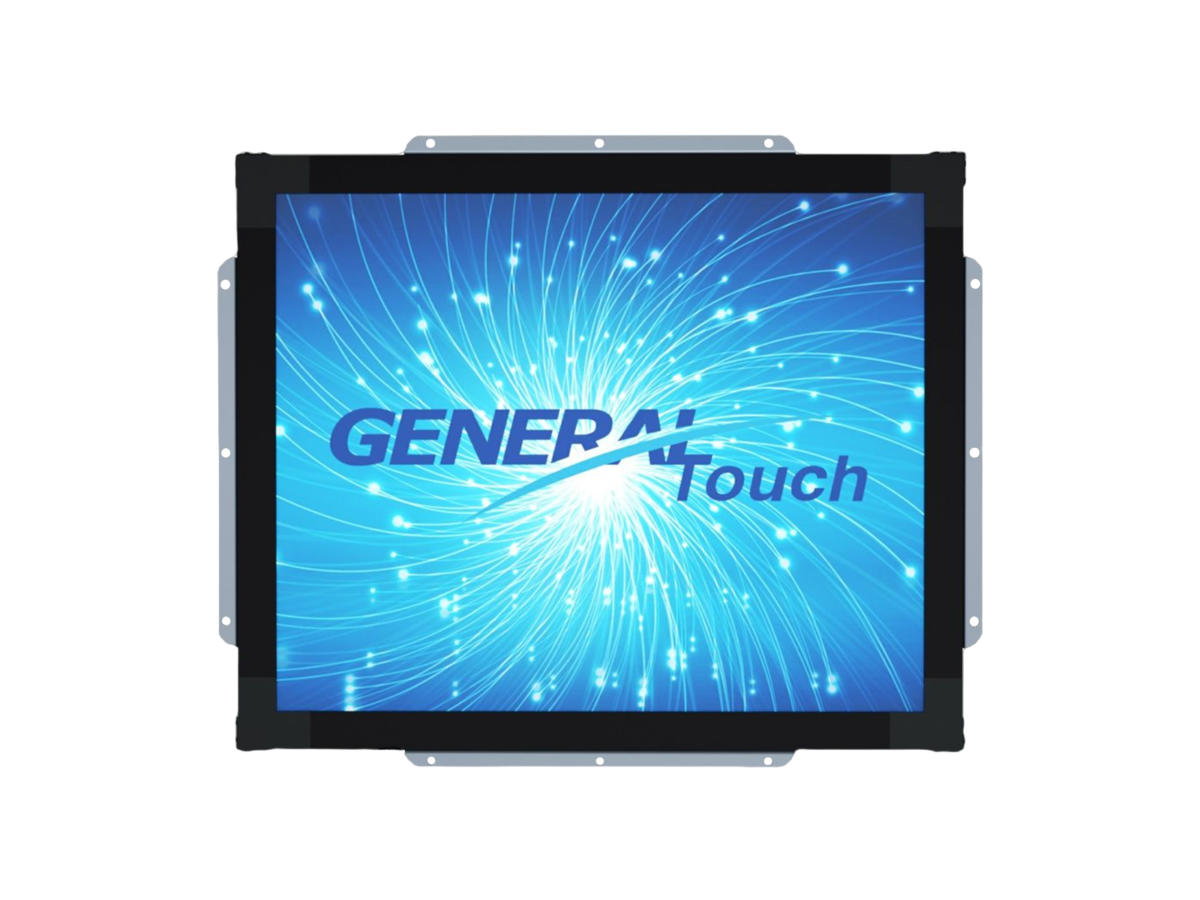

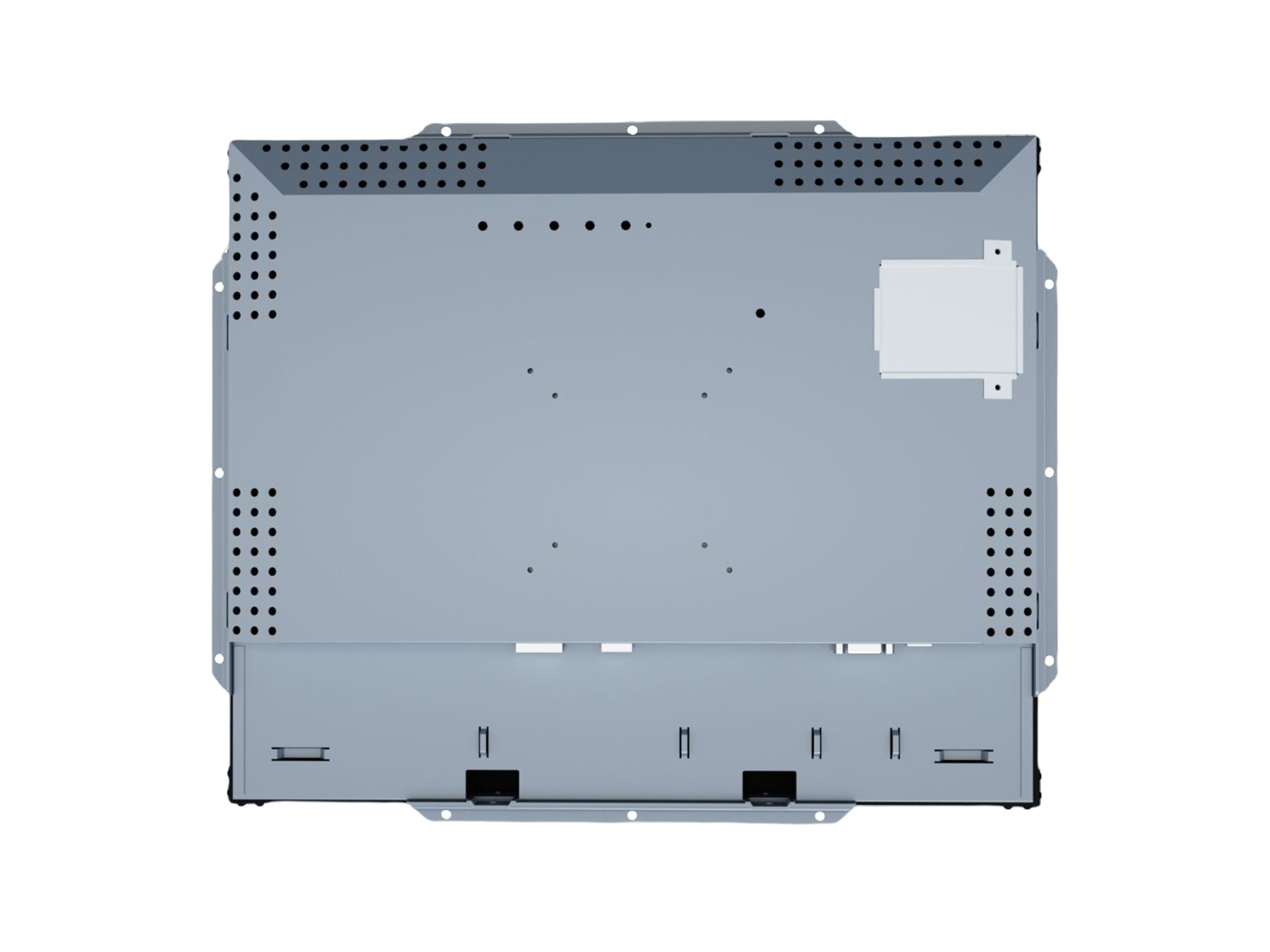

| Name | 19 Inch Open Frame SAW Touchmonitor |
| Model | OTL193 |
| LCD Panel Parameters | |
| Display Technology | Active Matrix TFT-LCD With LED Backlight |
| Aspect Ratio | 5:4 |
| Active Area (W x H) | 376.32 mm × 301.06 mm |
| Native Resolution | 1280 × 1024 @ 60 Hz |
| Response Time (Typ.) | 5 ms |
| Display Colors | 16.7million |
| Luminance (Typ.) | 250 nits; with SAW 225 nits |
| Contrast Ratio (Typ.) | 1000 : 1 |
| Viewing Angle (Typ.) | Horizontal (left/right) CR≥10 85°/85° |
| Vertical (up/down) CR≥10 80°/80° | |
| Touch Screen Parameters | |
| Touch Technology | SAW |
| Surface Treatment | Optional: Anti-glare |
| Active Area | 380.00 mm × 304.00 mm |
| Thickness (Total) | 4.00 ± 0.2 mm |
| Light Transmission | ≥90% |
| Response Time | 10.4 ms |
| Touch Screen Interface | USB / RS232 |
| Touch Point | 1 |
| Overall Parameters | |
| Case/Bezel Color | Gray |
| Mounting Options | Side Mounting, VESA: 75 × 75 mm, 100 × 100 mm |
| Outline Dimensions（W×H×D） | 427.50mm×351.50mm×48.20mm |
| Power Supply | Input Voltage Range: +12V DC ± 5%, Coaxial power jack 2.5mm pin outer diameter |
| On-Screen Display (OSD) | Control (back): Power, Auto, Up, Down, Menu |
| Power Consumption | MAX: 25W |
| Operating Altitude | ≦3000 m |
| Temperature Range | Operating: 0℃ to 40℃, storage: -20℃ to 60℃ |
| Humidity (Non-Condensing) | Operating: 20% to 80%, storage: 10% to 90% |
| I/O | VGA, DVI, USB(Type B), RS232 |
| Accessories | Cables: VGA×1, USB×1, 1.5m Length |
| Carton Box Dimensions (1 unit in one carton) |
530 mm × 460 mm × 185 mm |
| Weight | Gross: 8 Kg Net: 6 Kg |
| MTBF | 50,000 hours demonstrated |
| Agency Approvals | CCC, CE, FCC |
| Warranty | 3 Years |
| Ordering Information | ||
| Part Name | Part Number | Description |
| OTL193-R04P-SUCD | 10201010023R | 19”, 5:4, 250nits, SAW, USB & RS232, VGA/DVI |
