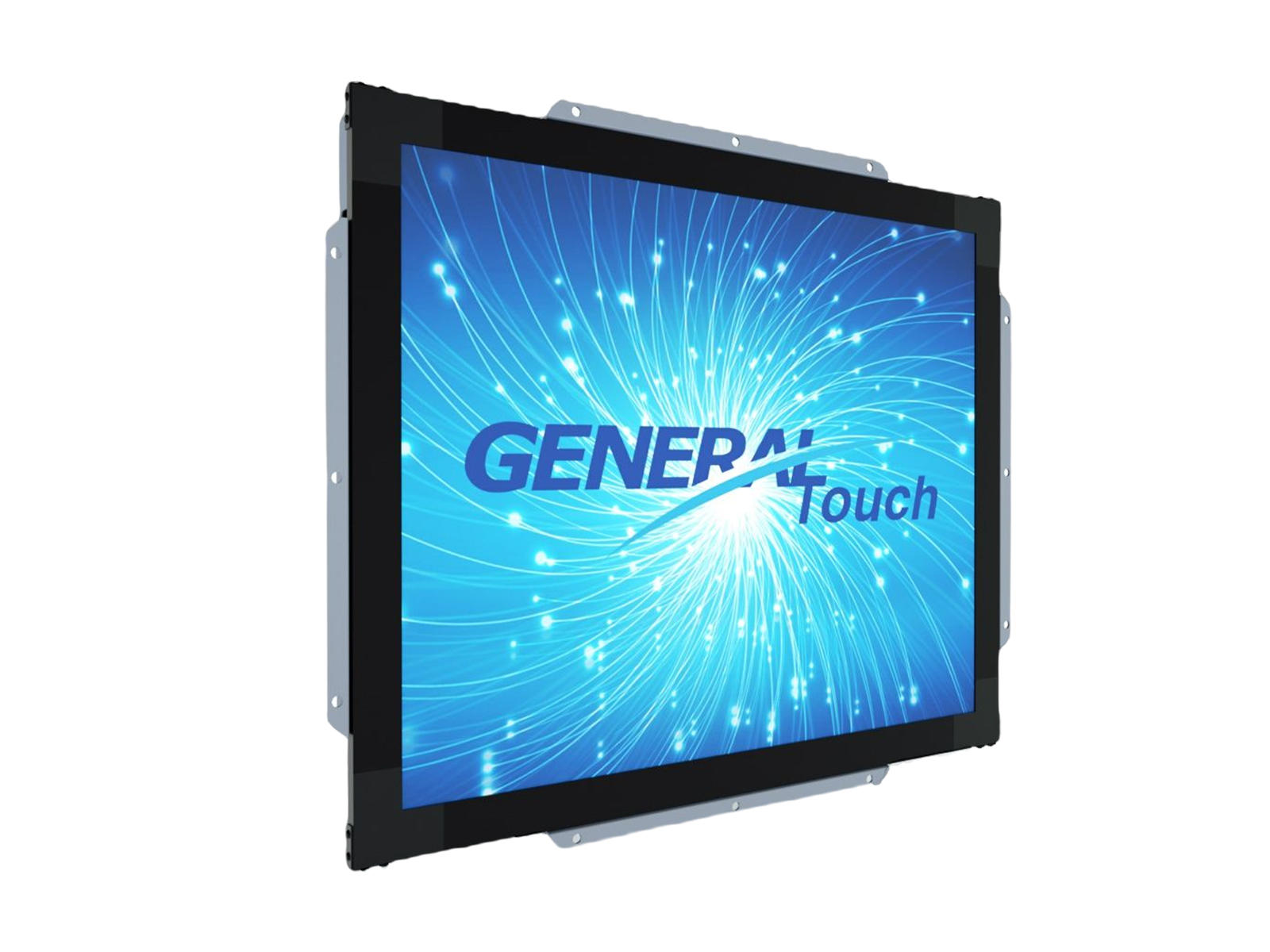

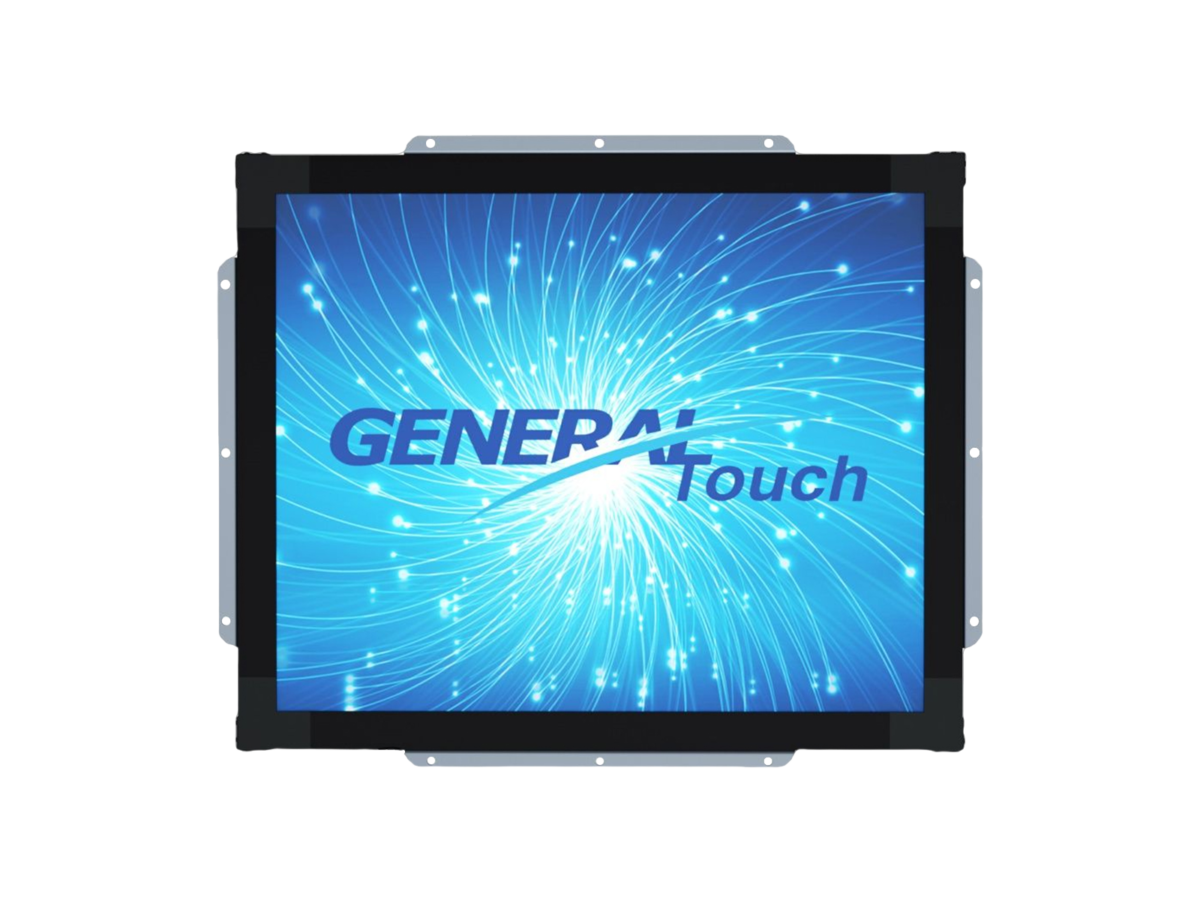

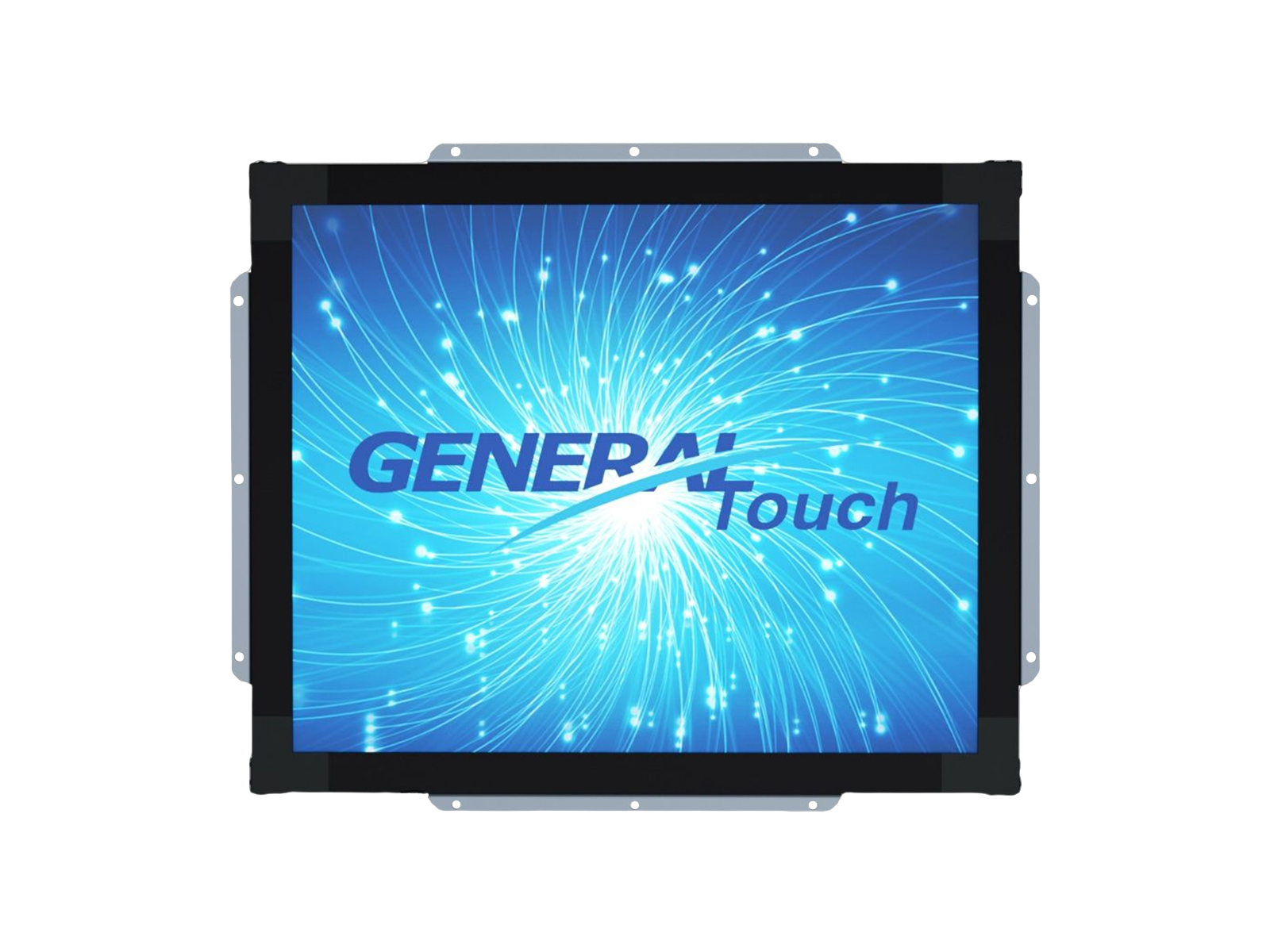

| Name | 15 Inch Open Frame Touchmonitor |
| Model | OTL153 |
| LCD Panel Parameters | |
| Display Technology | Active Matrix TFT-LCD With LED Backlight |
| Aspect Ratio | 4 : 3 |
| Active Area (W x H) | 304.128 mm × 228.096 mm |
| Native Resolution | 1024 × 768 |
| Response Time (Typ.) | 23 ms |
| Display Colors | 16.2 million |
| Luminance (Typ.) | 350 nits; with SAW 315 nit |
| Contrast Ratio (Typ.) | 2500 : 1 |
| Viewing Angle (Typ.) | Horizontal (left/right) CR≥10 88°/88° |
| Vertical (up/down) CR≥10 88°/88° | |
| Touch Screen Parameters | |
| Touch Technology | SAW |
| Surface Treatment | Optional: Anti-glare |
| Active Area | 306.00 mm × 324.00 mm |
| Thickness (Total) | 4.00 ± 0.2 mm |
| Light Transmission | ≥90% |
| Response Time | 10.4 ms |
| Touch Screen Interface | USB / RS232 |
| Touch Point | 1 |
| Overall Parameters | |
| Case/Bezel Color | Black |
| Mounting Options | Side Mounting, VESA: 200 × 100 mm |
| Outline Dimensions（W×H×D） | 344.50 mm × 268.50 mm × 39.00 mm |
| Power Supply | External Adapter: 100-240V AC, 50-60 Hz Input Voltage Range: +12VDC ± 5% |
| On-Screen Display (OSD) | Control (back): Power, Auto, Up, Down, Menu |
| Power Consumption | MAX: 25W |
| Operating Altitude | ≦3000 m |
| Temperature Range | Operating: 0℃ to 40℃, storage: -20℃ to 60℃ |
| Humidity (Non-Condensing) | Operating: 20% to 80%, storage: 10% to 90% |
| I/O | VGA, USB (Type B), RS232 |
| Accessories | Cables: VGA × 1, USB × 1, Power Cord, 1.5 m Length Adaptor: 12V/3.33A, DC Cable: 1500 mm, DC Jet ∅2.5 mm |
| Carton Box Dimensions (1 unit in one carton) |
525 mm × 460 mm × 185 mm |
| Weight | Gross: 6 Kg Net: 4.5 Kg |
| MTBF | 50,000 Hours Demonstrated |
| Agency Approvals | CCC, CE, FCC |
| Warranty | 3 Years |
| Ordering Information | ||
| Part Name | Part Number | Description |
| OTL153-R04P-SUD | 110301467R | 15”, 5:4, 350nits, SAW, USB & RS232, VGA |
